BARiT Industrial Floors

The ever increasing cost call for some long-living floor coatings to low cost of maintenance and upkeep. BARiT industry floors may bear heavy loads. Being jointless, they are easy to clean. They are durable, cost-saving and ecologically beneficial.

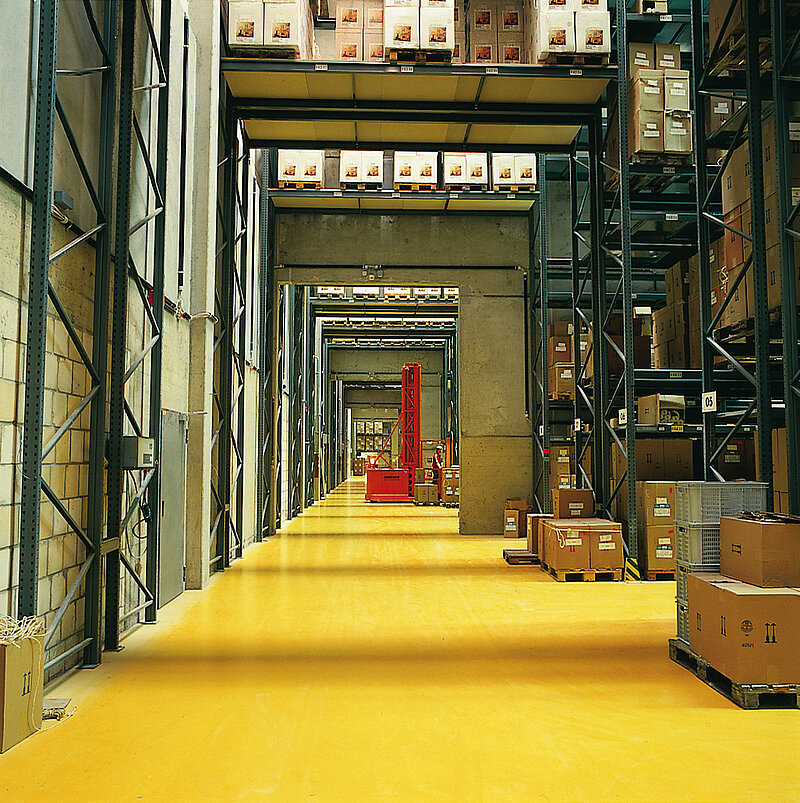

Marburger Tapetenfabrik GmbH + Co. KG, Kirchhain
Marburger Tapetenfabrik GmbH + Co. KG, Kirchhain

High storage shelves require floor coatings of utmost plane levels. BARiT COATING Type HRL consists of a self-levelling 2-components system based on solvent-free epoxy resin packed with mineral fillers and inorganic pigments.

Quick Info

  • jointless
  • most levelness precision
  • antiskid of mat surface to BGR 181 R9
  • mechanical / chemical resistance
  • almost no abrasion
  • resisting to compression and strong to impacts
  • Fire classification Cfl-s
  • easy cleaning

Optics

BARiT RESIN-COATING - Type: HRL, can be installed in a glossy or matte finish based on the BARiT color chart.

However, industrial flooring does not always have to look neutral and sober. Pavement markers may be useful as indicators for escape routes, restricted and/or loading zones.

Specialized colours are available for areas over 500m² on request.

RAL 9002
RAL 9002
grey white
RAL 1002
RAL 1002
telegrey
RAL 7012
RAL 7012
basalt grey

Properties

BARiT RESIN-COATING - Type: HRL, is a two-component epoxy system based on a solvent and plasticizer free epoxy resin, enriched with mineral fillers and inorganic pigments. With self-leveling materials, surfaces with exacting accuracy can be installed in accordance with DIN 15185. The leveled flatness can be measured from 0.5 mm to 1 mm over a coverage distance of 1 m.
The structure of HRL industrial flooring and a proper laying technique ensure a coating with low abrasion, which is equipped with good mechanical and chemical resistance. Likewise, HRL industrial flooring is resistant to a variety of alkalis, diluted acids, salt solutions, mineral pils, as well as lubricants and fuels. The flooring's thickness of 2 - 4 mm gives HRL a strong mechanical stability.
For temperature exposure, this flooring can handle 120 °C temporarily, 40 °C consistently.

Type HRL-COATING
Bindingt agent 2-K-EP-resin
Fillers inorganic/inert
Solid matters 100 %
Flash point > 55 °C
Consumption/m² ca. 1,4 kg/mm
Grade of gloss glossy or mat
Colour shade BARiT card of colours
Bending tensile DIN 1164** > 10 N/mm²
Compression strength DIN 1164** > 40 N/mm²
Adhesive pull strength DIN EN 24624 > 1,0 N/mm²
Light-fastness with finish conditionally resisting to UV
Temperature resistance 70 °C consistently
Chemical resistance to resistance list and self test
Working under conditions of:
  • air humidity
  • residual moisture of the ground
  • ground temperature min.
  • ground temperature max.

  • 40 - 65 %
  • < 3 %
  • 18 °C
  • 25 °C
Curing time at 20°C:
  • not sticky
  • walking admissible
  • final hardness
  • mechanical stability

  • after 16 hours
  • after 2 days
  • after 7 days
  • after 7 days
Cleaning BARiT Cleaner*
** with prism method - according to AGI Worksheet A 80 and BEB Worksheets KH 3/Kh 4
* according to cleaning and care instructions
