BARiT Industrial Floors

The ever increasing cost call for some long-living floor coatings to low cost of maintenance and upkeep. BARiT industry floors may bear heavy loads. Being jointless, they are easy to clean. They are durable, cost-saving and ecologically beneficial.

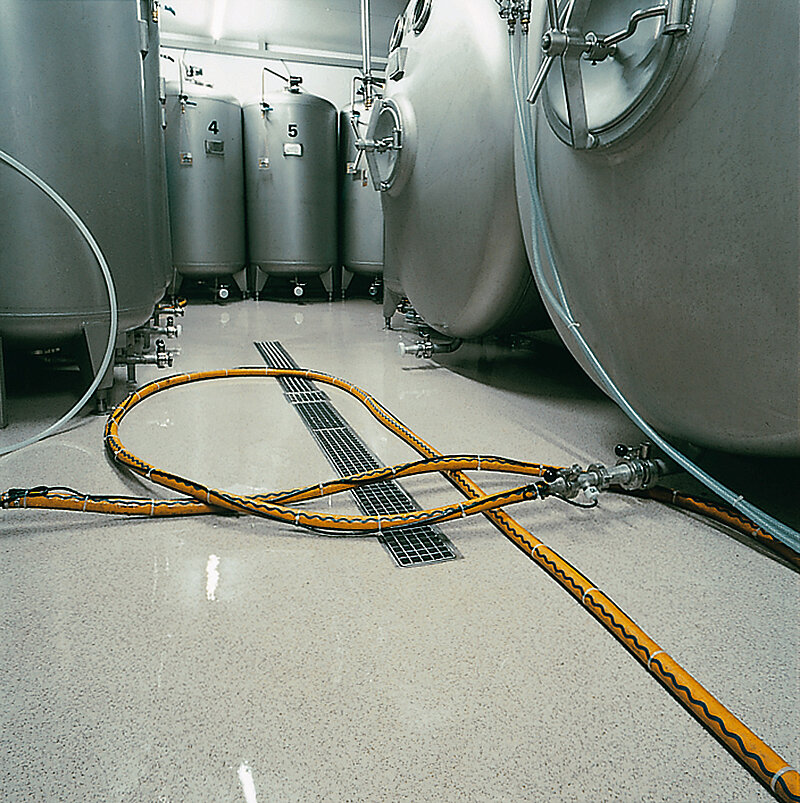

Klosterbrauerei Andechs, Andechs
Klosterbrauerei Andechs, Andechs

In industrial buildings, floor coatings have to endure utmost mechanical loads. For this purpose, INDUSTRY TERRAZZO consists of aluminium oxide abrasive, high-quality water-white epoxy resin and granulates coated colour-fast with polyurethane resin packed mechanically in a layer of 8 —10 mm thickness.

Quick Info

  • jointless
  • silent and vibration-free travelling
  • non-porous
  • aesthetic
  • antiskid to BGR 181 R9
  • resisting all chemical and mechanical loads
  • almost no abrasion
  • easy cleaning and disinfection

Optics

The timeless look of the INDUSTRY-TERRAZZOS is determined by the quality of the granules. An installation in black/gray is not only aesthetically pleasing, but also insensitive to dirt.

brown/white
brown/white
black/white
black/white
München
München
Frankfurt
Frankfurt

Properties

The INDUSTRY-TERRAZZO consists of fused aluminum oxide, high-quality water-clear epoxy resin, and polyurethane coated colorfast granules, which is installed in a layer of 8-10 mm thick. An affordable option is the mechanical installation using natural or colored sands.
INDUSTRY-TERRAZZO provides for good chemical resistance. It is resistant against a variety of alkalis, diluted acids, salt solutions, mineral oils, as well as lubricants and fuels.
The structure of the INDUSTRY-TERRAZZO ensures high resistance to wear. With direct bonding to the underlying surface, it withstands both static and dynamic loading and unloading and maintains, even with forklift traffic, a low abrasion.
In addition, due to the seamless surface, transport equipment can move more silently and vibration-free. A matte finish allows a non-slipping movement.
For safety, INDUSTRY-TERRAZZO can be installed according to different non slipping classes according to BGR 181 from levels R 9 to R 12.
The seamless surface of INDUSTRY-TERRAZZO allows easy cleaning. For this purpose we offer BARiT Cleaner, which is specifically designed with its degreasing action to clean and care for our products.
The durability of the coating is based on the structure of the entire sub flooring.
To install INDUSTRY-TERRAZZO correctly, BARiT's service include the installation of the sub flooring as well as the drainage system.

Type INDUSTRY-TERRAZZO
Binding agent EP-resin
Fillers Granulates
Solid matters 100 %
Flash point > 100 °C
Grade of gloss silk gloss or mat
Consumption/m² 2 kg/mm
Grain BARiT card of grains
Fire behavior DIN EN 13501-1 Bfl-s1, hardly inflammable
Bending tensile strenght DIN 1164** > 10 N/mm²
Compression strength DIN 1164** > 40 N/mm²
Adhesive pull strength DIN EN 24624 > 2 N/mm²
Light-fastness conditionally resisting to UV
VOC Emission meets the requirements of AgBB
Anti-slip Class DIN 51130 R9, R11, R12
Barefoot Suitability DIN 51097 B and C
Temperature resistance 100 °C temporarily / - 30 °C to + 70°C consistently
Chemical resistance to resistance list and self test
Working under conditions of:
  • air humidity
  • residual moisture of the ground
  • ground temperature min.
  • ground temperature max.

  • 40 - 85%
  • < 3 %
  • 18 °C
  • 22 °C
Curing time at 20°C:
  • not sticky
  • walking admissible
  • final hardness
  • mechanical stability

  • after 12 hours
  • after 16 hours
  • after 7 days
  • after 7 days fully capable of bearing
Cleaning BARiT Cleaner*
** with prismamethod - according to AGI Worksheet A 81 and BEB Worksheets KH 5
* according to cleaning and care instructions
