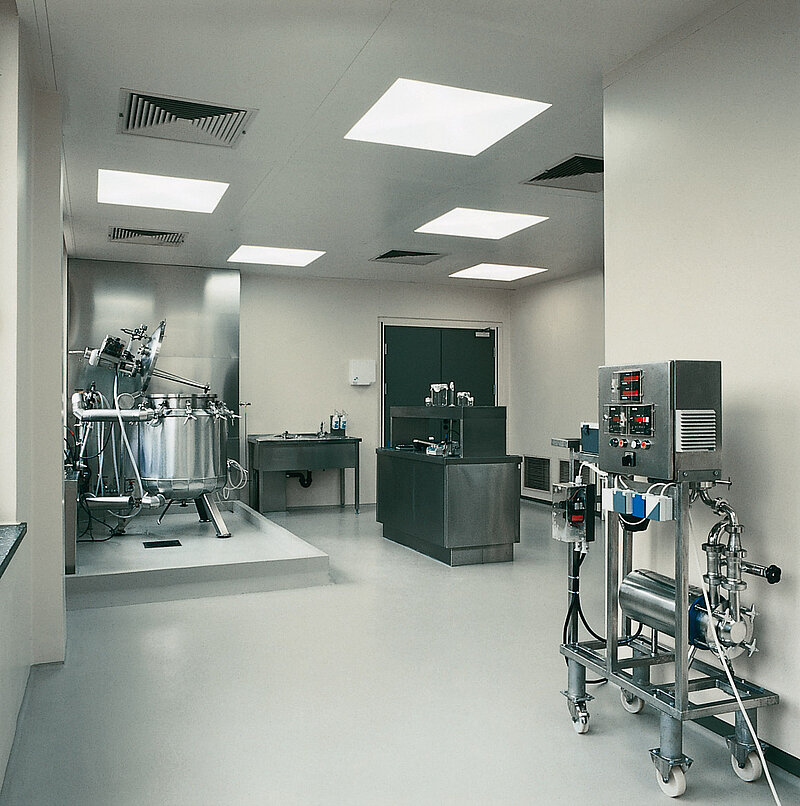

• Franz-Penzolt Zentrum, Erlangen

    Franz-Penzolt Zentrum, Erlangen

BARiT Clean Room Floors

Jointless and non-porous floor coatings offer hygienic and microbacterial security. For more than twenty years, BARiT has been developing floor coatings to meet with the very requirements of pharmaceutical industries and clean-room technologies.

BARiT WALL COATING FOR CLEAN ROOMS meets with the requirements of pharmaceutical and cosmetic industries, clean-room technology and of hospitals. Any existing tiled walls or outer walls of concrete or plaster being reinforced by some fabric may be coated just as e.g. some new walls of plaster board or even of particle boards.


Quick Info

  • jointless
  • non-porous
  • aesthetic
  • plane surface
  • chemical resistance
  • wipable
  • easy cleaning and disinfection


The ideal starting point for aesthetic appearances, the product expertise that is the hallmark of BARiT has always been greatly valued. BARiT CLEANROOM WALL COATING is visually distinguishable by its consistent coverage and high resistance to light. The surface can be coated in a matte or satin finish according to a selection from the BARiT colour chart. Specialized colours are available for areas over 500 m².

RAL 9002
RAL 9002
grey white
RAL 1015
RAL 1015
light ivory
RAL 7047
RAL 7047
tele grey


BARiT CLEANROOM WALL COATING is a two-component system based on solvent-free, epoxy resin that is enriched with mineral fillers and inorganic pigments, which are combined to improve the flexibility and elasticity of the polyurethane resin.
Due to the layer's thickness of Ø1.5 mm, the use of high quality materials and professional laying technology, the wall coating is resistant agains abrasions and chemicals.
BARiT CLEANROOM WALL COATING meets the requirements set for surface cleanliness in accordance with VDI 2083, Sheet 4, as well as for the FDA and GMP. Interrupting elements such as windows and doors can be integrated seamlessly. Without corners and edges the wall coating can be connected to BARiT FLOORING by using a channel or a triangular base/plinth. The seamless and non-porous surface of BARiT CLEANROOM WALL COATING can easily be sprayed down for cleaning and disinfection.

Bindemittel 2-K-EP-resin, emulsified water
Fillers inert
Flash point -
Consumption/m² 150-200 g/process
Colour shade BARiT card of colours
Grade of gloss silk gloss and mat
Bending tensile strength DIN 1164 -
Compression strength DIN 1164 -
Adhesive pull strength DIN EN 24624 > 1,0 N/mm²
Light-fastness conditionally resisting to UV
Temperature resistance 95 °C temporarily / 70 °C consistently
Chemical resistance to resistance list and self test
Working under conditions of:
  • air humidity
  • residual moisture of the ground
  • ground temperature min.
  • ground temperature max.
  • 40 - 85 %
  • 3 %
  • 10 °C
  • 22 °C
Curing time at 20°C:
  • not sticky
  • final hardness
  • mechanical stability
  • after 6 hours
  • after 7 days
  • after 4 days
Cleaning BARiT Cleaner*
* according to cleaning and care instructions
