BARiT Clean Room Floors

BARiT® Clean Room Floors

Cleanroom floors must meet special requirements - our cleanroom floors are up to the challenge!

Cleanroom floors POWER

The POWER coating has been developed to assure stability under mechanical and chemical loads and consists of a two-components system based on solvent-free epoxy resin packed with mineral fillers and inorganic pigments. The mechanical stability of this coating gets increased by addition of Quarzit. The POWER coating resists particularly well to compression.

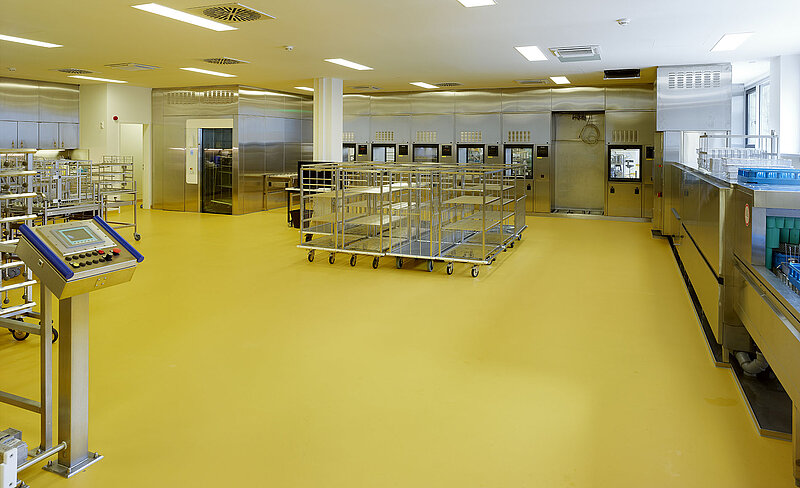

Steri, Universitätsklinik Ulm, Ulm

Quick Info

  • jointless
  • antiskid BGR 181 R9
  • mechanical resistance
  • chemical resistance
  • almost no abrasion
  • easy cleaning and disinfection


BARiT RESIN FLOORING - Type: POWER, can be installed with a matte or satin finish based on the BARiT colour chart. Specialized colours are available for areas over 500m² on request. However, industrial flooring does not always have to look neutral and sober, Markers may be useful as indicators for escape routes or restricted zones.


RAL 9002
RAL 9002 , grey white
RAL 7047
RAL 7047 , tele grey
RAl 1003
RAl 1003 , signal yellow


BARiT RESIN FLOORING - Type: POWER is a two-component epoxy system based on a solvent free epoxy resin, enriched with mineral fillers and inorganic pigments. Adding quartzite to the mixture increases the mechanical stability for this coating.

The structure of the flooring and a proper laying technique ensure a surface with low abrasion, which is equipped with good mechanical and chemical resistance. Likewise, BARiT KH FLOORING is resistant to a variety of alkalis, diluted acids, salt solutions, mineral oils, as well as lubricants and fuels. The flooring can be installed with a thickness of 2 - 3 mm. For temperature exposure, this flooring can handle 120 °C temporarily, 40 °C consistently.

Fillers inorganic/inert
Solid matters 100 %
Flash point > 100 °C
Consumption/m² 1,6 kg/mm
Grade of gloss gloss or mat with finish
Colour shade BARiT card of colours
Bending tensile strength DIN 1164** > 10 N/mm²
Compression strength DIN 1164** > 40 N/mm²
Adhesive pull strength DIN EN 24624 > 1,0 N/mm²
Light-fastness with finish conditionally resisting to UV
VOC Emission Meets the requirements of AgBB
Anti-slip Class DIN 51130 R9, R11, R12
Temperature resistance 120 °C temporarily / 40 °C consistently
Chemical resistance to resistance list and self test
Working under conditions of:
  • air humidity
  • residual moisture of the ground
  • ground temperature min.
  • ground temperature max.
  • 40 - 85%
  • < 3 %
  • 18 °C
  • 25 °C
Curing time at 20°C:
  • not sticky
  • walking admissible
  • final hardness
  • mechanical stability
  • after 8 - 10 hours
  • after 24 hours
  • after 7 days
  • after 7 days
Cleaning BARiT Cleaner*
Binding agent 2-K-EP-resin
