Our services include detailed installations - floor drains, box gutters, slotted gutters, or coved channels are just a few of our offerings.


Whether you choose cleanroom floors or other design floors: Spot drainage of the room is guaranteed with a floor drain from BARiT. Choose from different variants to match your synthetic resin floor or other floor covering from our range and get form and function from a single source.

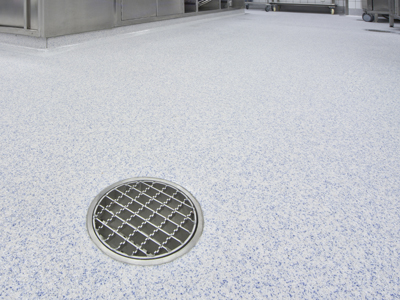

An application example: In combination with BARiT coverings, round floor drains are installed without joints - for optimum usability and hygiene.


Quick Info

  • stainless steel
  • drain body of one piece only
  • solid covers
  • covers to meet requirements of pharmaceuticals and clean rooms
  • easy cleaning
  • thermal loads admissible
  • mechanically stable


Find the floor drain that suits you!

You can get your floor drain from BARiT in four different versions. Entscheiden Sie sich entsprechend Ihrem Einsatzbereich und passend zu den in Frage kommenden Designböden, zum Beispiel für eine Variante mit rutschhemmender Platte oder mit Stabrost. Informieren Sie sich untenstehend über die technischen Eigenschaften – und natürlich beraten wir Sie auch gern persönlich zu den einzelnen Modellen und deren Verwendbarkeit. Get in touch!

Floor drain with smooth plate

with anti-slip plate

Floor drain with bar grate

Sealed plate with siphon


smooth panel
smooth panel
Anti-slip panel
Anti-slip panel
sterile cover
sterile cover , with siphon


The BARiT floor drain is made of stainless steel. Additional stability is provided for with its solid frame for the ground connection, rounded edges, and onepiece drain body. Depending on the customer‘s wishes, solid covers with and without anti-slip surfaces, grid and bar grates are available. Lockable covers that emit little odor or are liquid-tight can be used in pharmaceutical and cleanroom areas.

Suction levers allow for the opening and closing of floor drains. Removable bellshaped siphons and dirt collecting baskets, which are placed above the water level, provide for additional hygienic protection.

As part of BARiT’s services, professional installation is included alongside supplying the floor drains. For a coupled and seamless integration, these are incorporated into epoxy concrete. Extensive variations in the type of floor drains offer a wide range of solutions.

Stainless steel floor drains can be easily cleaned with our BARiT cleaner.

Material thickness 2 mm, deep drawer 1,5 mm
Surface chemically descaled
Construction round bodied, no channel connection
Cleaning BARiT Cleaner*
Firesafety on demand
Material Stainless steel AISI 304 1.4301
TYPE BA 150 BA 200 BA 250
Outlet DN 70 mm DN 100 mm DN 100 mm
Flow Ltr./sec. 1,6-2,2 2,7-3,1 3,5
Inside Diameter ∅185 ∅235 ∅285
Outside Diameter of Frame ∅205 ∅255 ∅305
Outside Diameter of Drainbody ∅153 ∅203 ∅253
Length of Outlet Pipe 70 70 80
Height without Outlet Pipe 200 240 260
Height of Frame 30 30 30
Water Level of Trap 60 60 60
